Estimated Lead Time : 6 – 8 Weeks

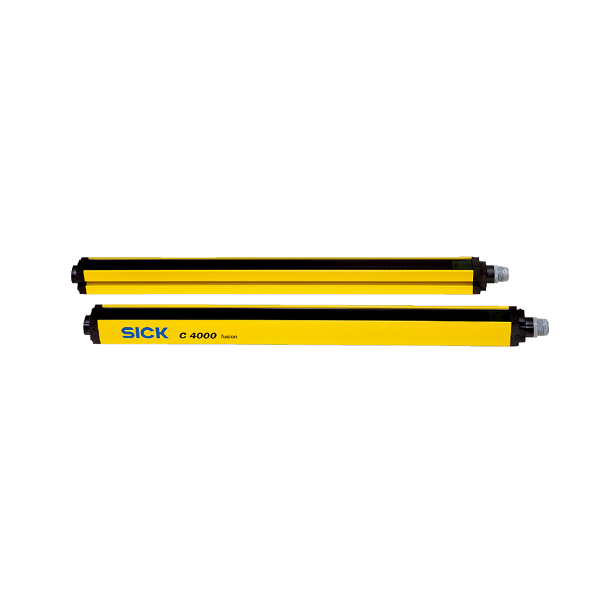

Manufacturer : SICK Sensors
Part Number : C40E-0302GY010
Application : Normal industrial environment
System part : Receiver
Resolution : 20 mm
Scanning range : 21 m
Protective field height : 300 mm
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) : 15 * 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 850 g
Shipping Weight : 2 Kg
