Estimated Lead Time : 6 – 8 Weeks
Manufacturer : SICK Sensors

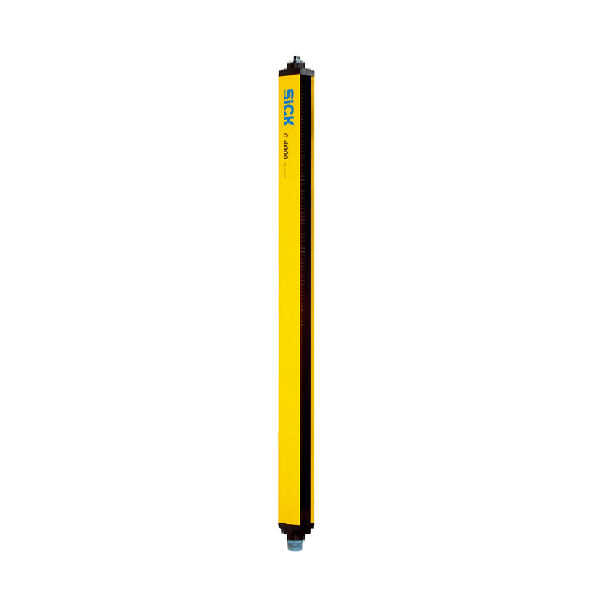

Part Number : C40E-0703DB040
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 21 m
Protective field height : 750 mm
Response time : 11 ms 1)
Synchronization : Optical synchronisation
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V) 1)
Residual ripple : ≤ 10 % 2)
Output signal switching devices (OSSDs) :
Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3)
ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)
OFF state, switching voltage LOW : ≤ 2 V DC
Current-carrying capacity per OSSD : ≤ 500 mA
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Enclosure rating : IP65 (EN 60529)
Ambient operating temperature : 0 °C … +55 °C
Storage temperature : –25 °C … +70 °C
Air humidity : 15 % … 95 %, Non-condensing
Vibration resistance : 5 g, 10 Hz … 55 Hz (EN 60068-2-6)
Shock resistance : 10 g, 16 ms (EN 60068-2-27)
Weight : 1,700 g
Shipping Weight : 2.7 kg
