Estimated Lead Time : 6 – 8 weeks.

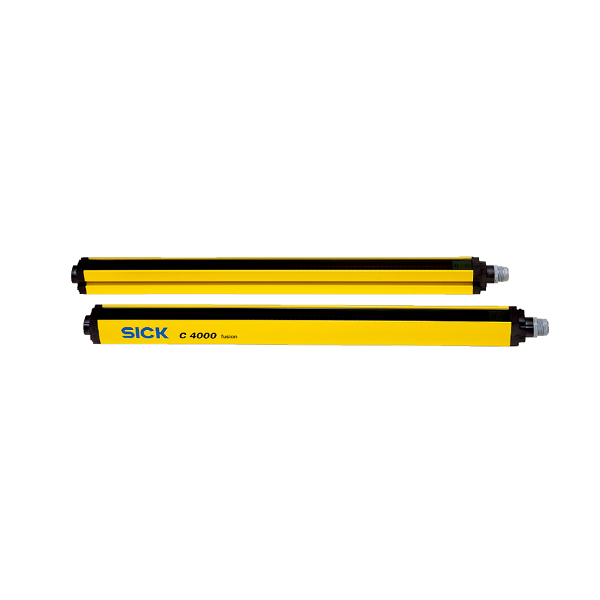

Manufacturer : SICK Sensors
Part Number : C40E-1002GY010
Application : Normal industrial environment
System part : Receiver
Resolution : 20 mm
Scanning range : 21 m
Protective field height : 1,050 mm
Synchronization: Optical synchronisation
System connection : Hirschmann male connector M26, 12-pin
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 2.28 kg
Shipping Weight : 3.3 kg
