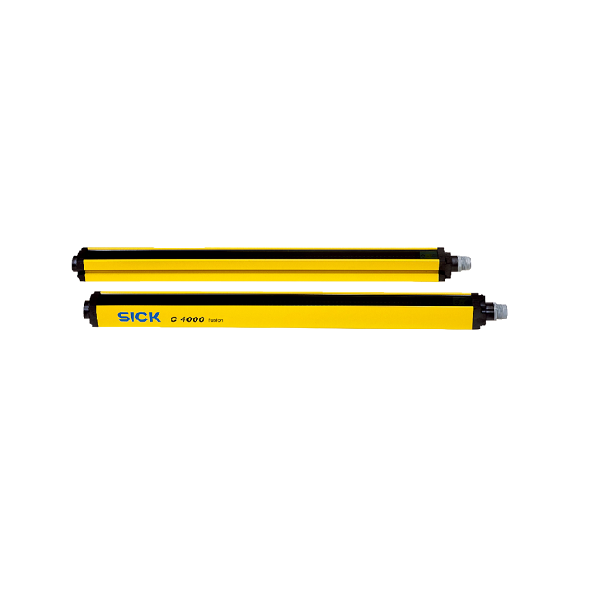

C40E-1003GK010 SICK Sensors Safety Light Curtains C4000 Palletizer Part Number : 1043180

Estimated Lead Time : 6 – 8 Weeks

Manufacturer : SICK Sensors

Part Number : C40E-1003GK010

Description : C4000 Palletizer Advanced with extension connection on receiver

Application : Normal industrial environment

System part : Receiver

Resolution : 30 mm

Scanning range : 7 m

Protective field height : 1,050 mm

Synchronization : Optical synchronisation

Items supplied :

Receiver

8 sliding nuts for side mounting

Test rod with diameter corresponding to the resolution of the safety light curtain

Adhesive label with information on the daily check

Operating instructions on CD-ROM

CDS (Configuration & Diagnostic Software)

Protection class : III (IEC 61140)

Supply voltage VS : 24 V DC (19.2 V … 28.8 V) 1)

Residual ripple : ≤ 10 % 2)

Output signal switching devices (OSSDs) :

Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3)

ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)

OFF state, switching voltage LOW : ≤ 2 V DC

Current-carrying capacity per OSSD : ≤ 500 mA

Application diagnostic output (ADO) :

Output voltage HIGH (active) : 24 V DC (15 V DC … 28.8 V DC)

Output voltage LOW (deactivated) : High resistance

Output current HIGH (active) : ≤ 100 mA

Dimensions : See dimensional drawing

Housing cross-section : 48 mm x 40 mm

Housing material : Aluminum extruded profile

Enclosure rating : IP65 (EN 60529)

Ambient operating temperature : 0 °C … +55 °C

Storage temperature : –25 °C … +70 °C

Air humidity : 15 % … 95 %, Non-condensing

Vibration resistance : 5 g, 10 Hz … 55 Hz (EN 60068-2-6)

Shock resistance : 10 g, 16 ms (EN 60068-2-27)

Weight : 2,280 g

Shipping Weight : 3.3 kg
