Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

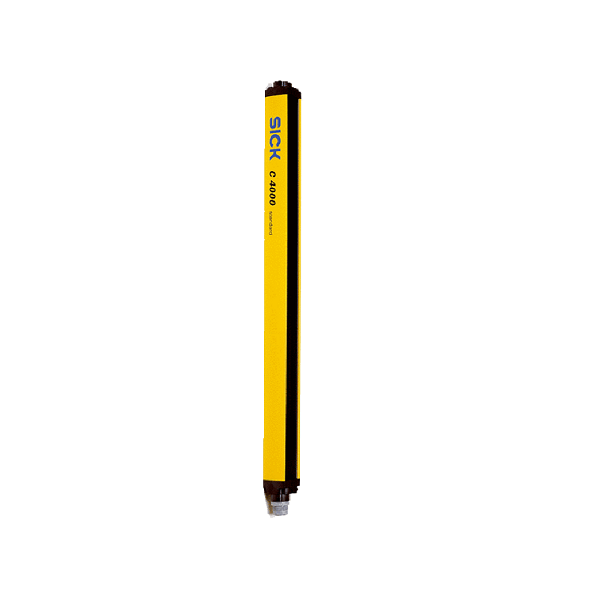

Part Number : C40E-1303CB010
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 21 m
Protective field height :1,350 mm
Response time : 13 ms 1)
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) :
15 * 10-9 (EN ISO 13849)
43 * 10-9 (EN ISO 13849)
63 * 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V) 1)
Power consumption : ≤ 10 % 2)
Output signal switching devices (OSSDs)
Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3)
ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)
OFF state, switching voltage LOW : ≤ 2 V DC
Current-carrying capacity per OSSD : ≤ 500 mA
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Wave length : 850 nm
Weight : 2,850 g
Shipping weight : 4 kg
