Estimated Lead Time: 6 – 8 Weeks.
Manufacturer: SICK Sensors

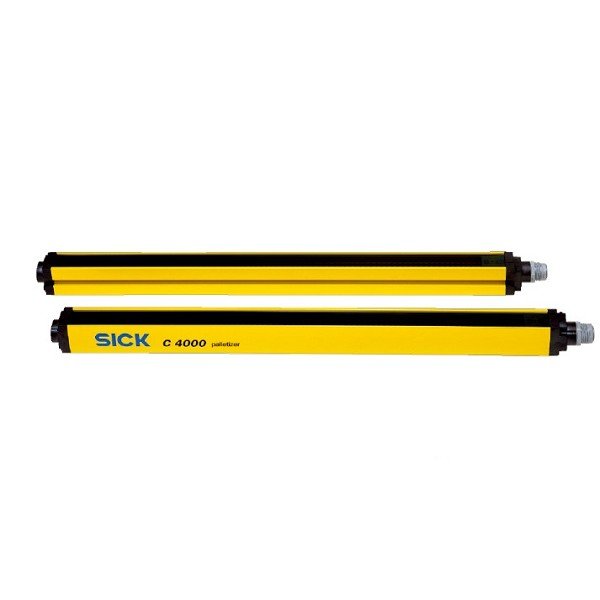

Product Type: Safety Light Curtain
Model: C4000 Palletizer Advanced
Part Number: 1043162
Detailed Technical Data:
Features:
Description: C4000 Palletizer Advanced without extension connection
Application: Normal industrial environment
System part: Receiver
Resolution: 30 mm
Scanning range: 7 m
Protective field height: 1,800 mm
Synchronization: Optical synchronisation
Items supplied:
Receiver
8 sliding nuts for side mounting
Test rod with diameter corresponding to the resolution of the safety light curtain
Adhesive label with information on the daily check
Operating instructions on CD-ROM
CDS (Configuration & Diagnostic Software)
Mechanical Data:
Dimensions: See dimensional drawing
Housing cross-section: 48 mm x 40 mm
Housing material: Aluminum extruded profile
Weight: 5 kg
Shipping Weight: 4 kg
