Estimated Lead Time : 6 – 8 weeks.

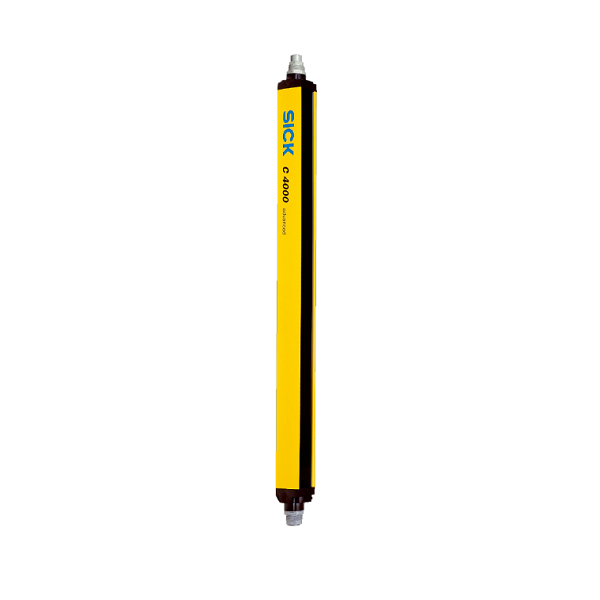

Manufacturer : SICK Sensors
Part Number : C40E-1804DB010
Application : Normal industrial environment
System part : Receiver
Resolution : 40 mm
Scanning range : 21 m
Protective field height : 1,800 mm
Response time : 13 ms
Synchronization: Optical synchronisation
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection: Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Extension connection : Female connector M12, 8-pinConfiguration connection : Female connector M8, 4-pinConfiguration method : PC with CDS (Configuration and Diagnostic Software)Display elements : 7-segment display
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 3.71 kg
Shipping Weight : 5 kg
