Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

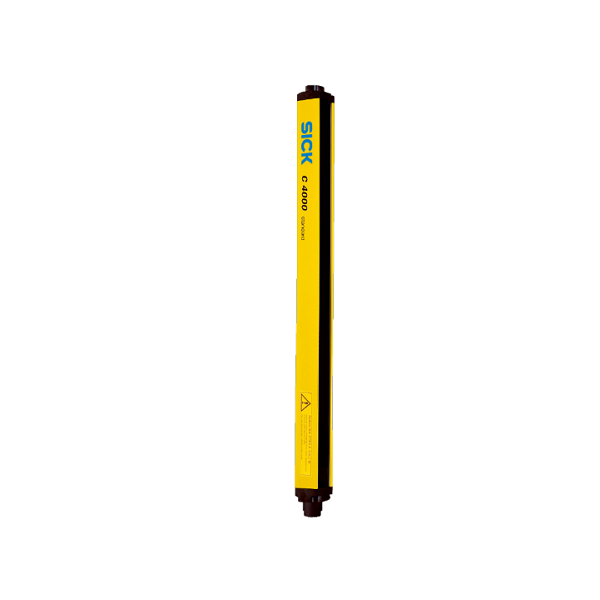

Part Number : C40E-S133
Application : Explosive areas
Ex-approvals : ATEX for gas: II 3G Ex nA op is IIC T4 Gc X , ATEX for dust: II 3D Ex tc IIIC T135°C Dc
System part : Receiver
Resolution : 40 mm
Scanning range : 21 m
Protective field height : 1,350 mm
Response time : 12 ms (Uncoded) , 18 ms (code 1 or code 2)
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) : 15 x 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection : Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Residual ripple : ≤ 10 %
Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3)
ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)
OFF state, switching voltage LOW : ≤ 2 V DC
Current-carrying capacity per OSSD : ≤ 500 mA
Type of output : PNP semiconductor, short-circuit protected 3)
Output voltage HIGH (active) : : 24 V DC (VS – 4.2 V DC … VS)
Output voltage LOW (deactivated) : High resistance
Output current HIGH (active) : ≤ 100 mA
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Shipping Weight : 1 kg
