Estimated Lead Time : 6 – 8 weeks

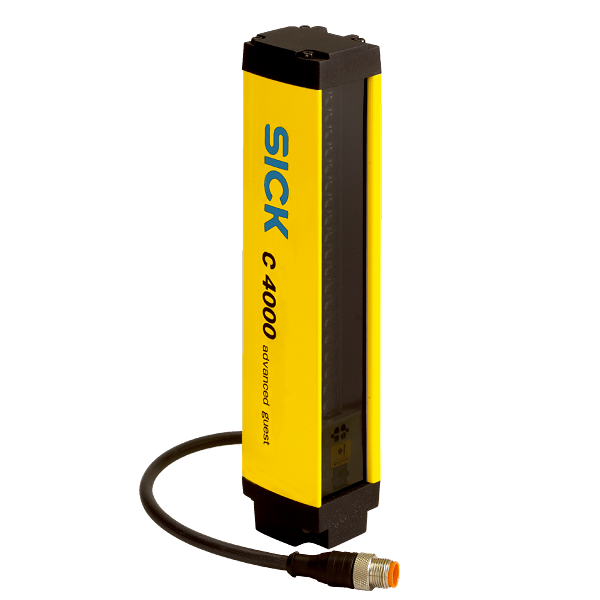

Manufacturer : SICK Sensors
Part Number : C46E-0301CU400
Application : Normal industrial environment
System part : Receiver
Resolution : 14 mm
Scanning range : 10 m
Protective field height : 300 mm
Response time : 11 ms
Synchronization : Optical synchronisation
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) :
Cascade with one guest : 43 * 10-9
TM (mission time) : 20 years (EN ISO 13849)
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Residual ripple : = 10 %
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Weight : 850 g
Shipping Weight : 2 kg
