Estimated Lead Time: 6 – 8 Weeks.

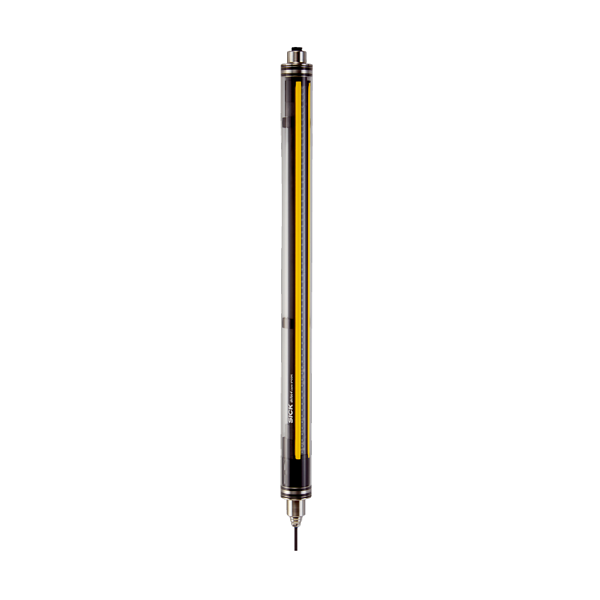

Manufacturer : SICK Sensors
Part Number : C4C-EB12010A10000
Sub product family : deTec4 Core IP69K
Application : Areas with special hygiene requirements
System part : Receiver
Compatible sender : 1219542
Resolution : 14 mm
Scanning range : 8.5 m
Protective field height : 1,200 mm
Response time : 16 ms
No blind zones : Yes
Synchronization : Optical synchronisation
Items supplied
Receiver in IP69K protective housing with connecting cable, 15 m
Test rod with diameter corresponding to the resolution of the safety light curtain
Safety instruction
Mounting instructions
Operating instructions for download
System connection : Connecting cable, 15 m, flying leads, 5-wire
Length of cable : 15 m
Cable diameter : 5 mm
Cable material : PUR, halogen-free
Conductor cross section : 0.34 mm²
Display elements : LEDs
Dimensions : See dimensional drawing
Material
Protective housing : PMMA
End caps : Stainless steel 1.4404
Cable glands : Stainless steel 1.4404 including silicone seal
Compensating element (membrane) : PA 6
Shipping Weight : 2.2 kg
