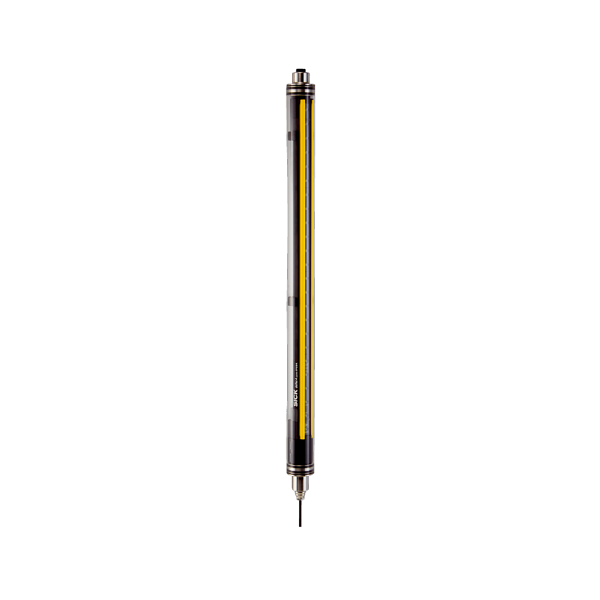

C4C-SB16530A10000 SICK Sensors Safety light curtains deTec/deTec2 Core IP69K/Pair Part Number : 1219570

Estimated Lead Time: 6 – 8 Weeks.

Manufacturer : SICK Sensors

Part Number : C4C-SB16530A10000

Sub product family : deTec4 Core IP69K

Application : Areas with special hygiene requirements

System part : Sender

Compatible receiver : 1219571

Resolution : 30 mm

Scanning range : 12.5 m

Protective field height : 1,650 mm

No blind zones : Yes

Synchronization : Optical synchronisation

Items supplied : Sender in IP69K protective housing with connecting cable, 15 m

Type Type : 4 (IEC 61496-1)

Safety integrity level : SIL 3 (IEC 61508)

Category : Category 4 (ISO 13849-1)

Performance level : PL e (ISO 13849-1)

PFHD (mean probability of a dangerous failure per hour) : 3.7 x 10-9

TM (mission time) : 20 years (ISO 13849-1)

Safe state in the event of a fault : At least one OSSD is in the OFF state.

System connection : Connecting cable, 15 m, flying leads, 5-wire

Length of cable : 15 m

Cable diameter : 5 mm

Cable material : PUR, halogen-free

Conductor cross section : 0.34 mm²

Display elements : LEDs

Dimensions : See dimensional drawing

Material

Protective housing : PMMA

End caps : Stainless steel 1.4404

Cable glands : Stainless steel 1.4404 including silicone seal

Compensating element (membrane) : PA 6

Shipping Weight : 6 kg
