Estimated Lead Time : 6 – 8 Weeks

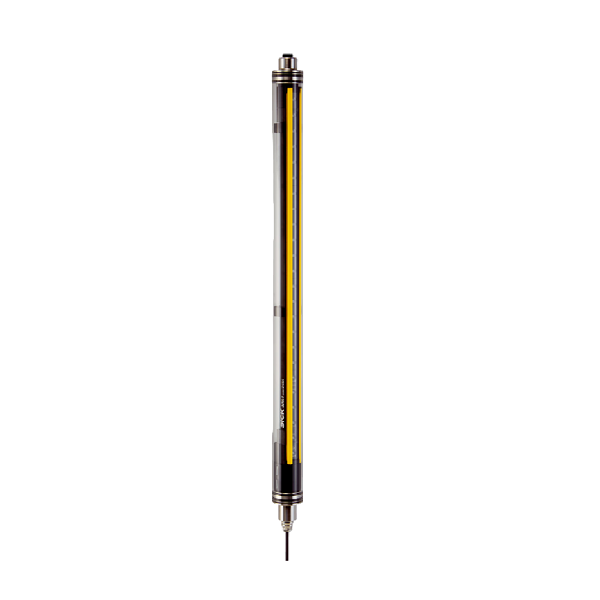

Manufacturer : SICK Sensors
Part Number : C4C-SB18030A10000
Sub product family : deTec4 Core IP69K
Application : Areas with special hygiene requirements
System part : Sender
Compatible receiver : 1219572
Resolution : 30 mm
Scanning range : 12.5 m
Protective field height : 1,800 mm
No blind zones : Yes
Synchronization : Optical synchronisation
Items supplied : Sender in IP69K protective housing with connecting cable, 15 m
Protective operation : Yes
Automatic calibration of the protective field width : Yes
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Ripple : ≤ 10 %
Power consumption typical : 1.3 W (DC)
Dimensions : See dimensional drawing
Material :
Protective housing : PMMA
End caps Stainless steel : 1.4404
Cable glands : Stainless steel 1.4404 including silicone seal
Compensating element (membrane) : PA 6
Shipping Weight : 3 kg
