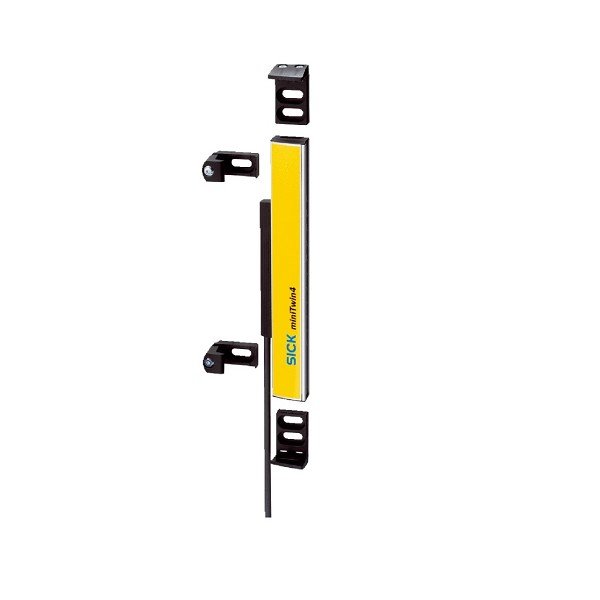

C4MT-11414ABB03FE0 SICK Sensors Safety Light Curtains miniTwin Part Number : 1207113

Estimated Lead Time : 6 – 8 weeks

Manufacturer : SICK Sensors

Part Number : C4MT-11414ABB03FE0

System part : 1 Twin-Stick

Usage :

miniTwin4 as a standalone device

miniTwin4 as last guest for 2- or 3-device cascade

Mounting system type : C-fix or L-fix bracket

Resolution : 14 mm

Scanning range :

Minimum 0 m … 4 m

Typical 0 m … 5 m

Protective field height : 1,140 mm

Response time : ≤ 17 ms 1)

Synchronization : Optical, without separate synchronization

Items supplied :

Twin stick

System plug

C-Fix and L-Fix bracket, 2 pieces each

Test rod with diameter corresponding to the resolution of the safety light curtain

Safety instruction

Mounting instructions

Operating instructions for download

Protection class : III (EN 61140)

Supply voltage VS : 24 V DC (19.2 V DC … 28.8 V DC)

Ripple : ≤ 10 % 1)

Power consumption: ≤ 3 A 2)

Output signal switching devices (OSSDs) :

Type of output : PNP semiconductors, short-circuit protected, cross-circuit monitored 3)

ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)

OFF state, switching voltage LOW : ≤ 2 V DC

Current-carrying capacity per OSSD : ≤ 300 mA

Housing cross-section (incl. system connection) : 15 mm x 32 mm

Housing material : Aluminum alloy ALMGSI 0.5

Weight : 400 g

Shipping Weight : 1.4 kg
