Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

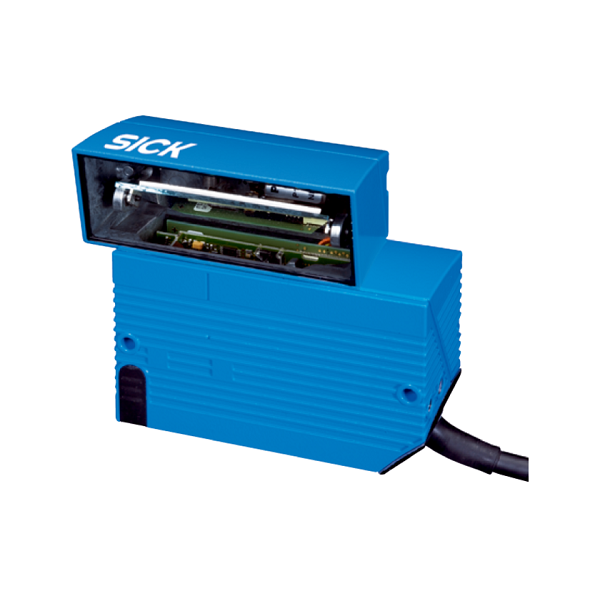

Part Number : CLV630-6001S01
Task : Identifying – 1D code
Version : Long Range
Connection type : Cable
Reading field : Oscillating mirror
Sensor type : Line scanner
Optical focus : Fixed focus
Light source : Light spot, laser, Visible, Red, 655 nm
Light spot : Oval
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 50°
Reading distance : 45 mm … 659 mm
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.35 mm … 1 mm
Oscillating mirror functions : Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
Oscillation frequency : 0.5 Hz … 6.25 Hz
Angle of deflection : –20° … 20°
Connection type : 1 x 15-pin D-Sub HD male connector (0.9 m)
Supply voltage : 18 V DC … 30 V DC
Power consumption : 6 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012
Window material : Plastic
Enclosure rating : IP65 (EN 60529)
Protection class : III (EN 61140)
Dimensions (L x W x H) : 95 mm x 107 mm x 41 mm
Weight : 420 g, with connecting cable
Shipping Weight : 1.5 kg
