Estimated Lead Time : 6 – 8 weeks
Manufacturer : SICK Sensors

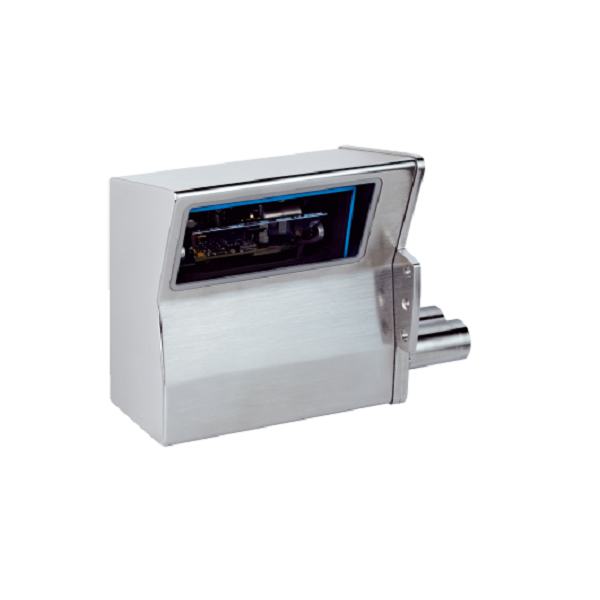

Part Number : CLV640-6831S01
Task : Identifying – 1D code
Version : Standard Density
Connection type : Ethernet
Reading field : Swivel mirror
Sensor type : Swivel mirror
Optical focus : Dynamic focus control
Light source : Light spot, laser, Visible, Red, 655 nm
Light spot : Circular
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 50°
Reading distance : 47 mm … 798 mm 1)
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.2 mm … 1 mm
Oscillating mirror functions : Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
Oscillation frequency : 0.5 Hz … 6.25 Hz
Angle of deflection : –20° … 20°
Connection type : 2 x M12 cylindrical connectors (1 x 17-pin male connector, 1 x 4-pin female connector)
Supply voltage : 18 V DC … 30 V DC
Power consumption : 6.5 W
Housing : Stainless steel
Housing color : Stainless steel (unpainted)
Window material : Plastic
Enclosure rating : IP69K (DIN 40 050, part 9)
Protection class : III (EN 61140)
Dimensions (L x W x H) : 121 mm x 164 mm x 84 mm
MTBF : 100,000 h
MTTF : 40,000 h (Laser diode) 1)
Weight : 1,230 g, without connecting cable
Shipping weight : 3 kg
