Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

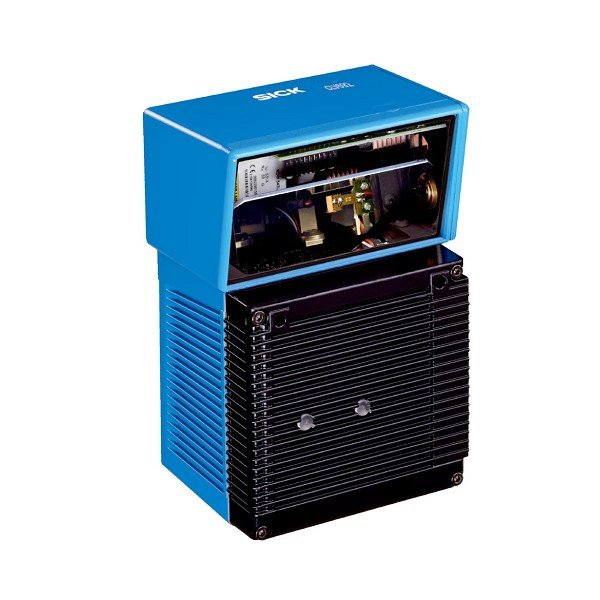

Part Number : CLV692-1000
Task : Identifying – 1D code
Version : High Density
Connection type : Depending on the cloning plug used
Reading field : Oscillating mirror
Sensor type : Oscillating mirror
Optical focus : Auto focus (alternative: dynamic focus control)
No. of distance configurations : = 8
Focus adjustment time : = 20 ms
Focus trigger source : Data interface / Digital inputs
Light source : Light spot, laser, Visible, Red, 660 nm
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : = 50°
Reading distance : 400 mm … 1,600 mm 1)
Scanning frequency : 400 Hz … 1,200 Hz
Code resolution : 0.17 mm … 0.4 mm
Oscillating mirror functions : Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
Oscillation frequency : 0.5 Hz … 4 Hz
Angle of deflection : –20° … 20° (can be adjusted via software)
Connection type : Depending on the cloning plug used
Supply voltage : 18 V DC … 30 V DC
Power consumption : 17 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Glass
Enclosure rating : IP65 (EN 60529/A1 (2002-02))
Dimensions (L x W x H) : 182 mm x 128 mm x 97 mm
MTBF : 100,000 h
MTTF : 40,000 h (Laser diode) 1)
Weight : 2,200 g
Shipping Weight : 4 kg
