Estimated Lead Time : 4-6 Weeks
Manufacturer : SICK Sensors

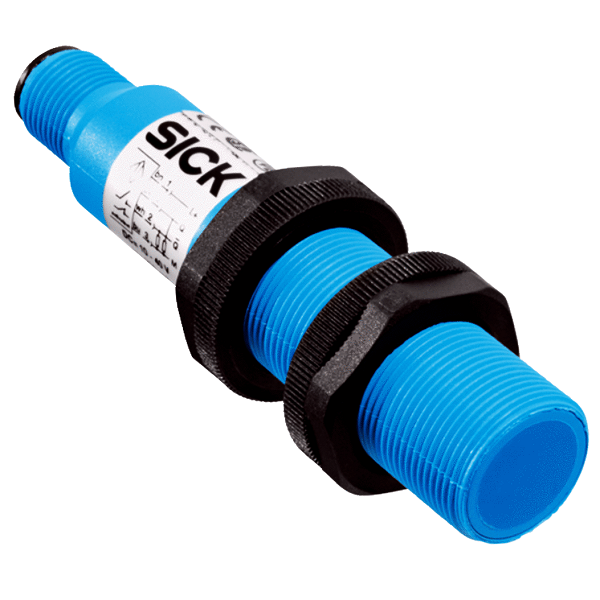

Capacitive Proximity Sensors CM18-12NPP-KC1
Type:CM18-12NPP-KC1
Part number: 6020410
Housing : Cylindrical thread design
Thread size : M18 x 1
Diameter : Ø 18 mm
Sensing range Sn : 3 mm … 12 mm
Safe sensing range Sa : 8.64 mm
Installation type : Non-flush
Switching frequency : 30 Hz
Connection type : M12, 4-pin male connector
Output type : PNP
Output function : Complementary
Electrical wiring : DC 4-wire
Adjustment : Potentiometer, 270° (Sensitivity)
Enclosure rating : IP 67 1)
Supply voltage : 10 V DC … 36 V
Ripple : ≤ 10 % 1)
Voltage drop : ≤ 2.5 V DC 2)
Current consumption : ≤ 10 mA 3)
Time delay before availability : ≤ 100 ms
Hysteresis : 4 % … 20 %
Repeatability : ≤ 5 % 4) 5)
Temperature drift (of Sr) : ± 10 %
EMC : According to EN 60947-5-2 6)
Continuous current Ia : ≤ 200 mA
Short-circuit protection : Yes
Reverse polarity protection : Yes
Power-up pulse protection : Yes
Shock and vibration resistance : 30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature : –25 °C … +80 °C
Housing material : Plastic, PBT
Housing length : 91.5 mm
Thread length : 46.5 mm
Tightening torque, max. : 2.6 Nm
Shipping Weight : 1 Kg
Download PDF File CM18-12NPP-KC1
