Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

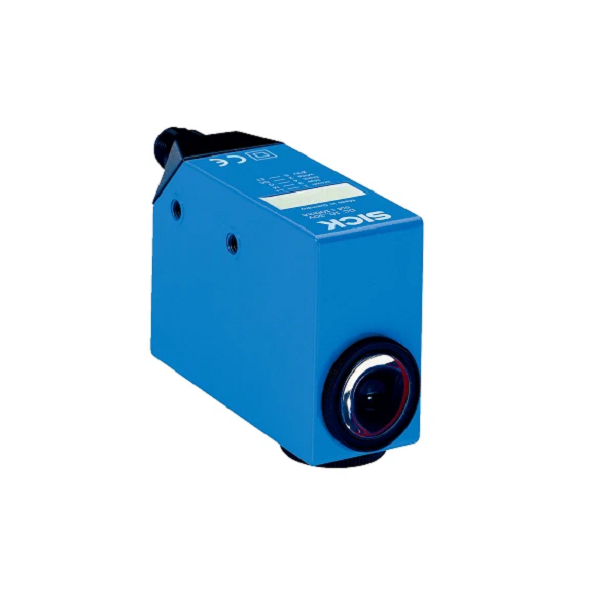

Part Number : CS84-N3612
Dimensions (W x H x D) : 30.4 mm x 80 mm x 53 mm
Sensing distance : ≤ 60 mm
Sensing distance tolerance : ± 9 mm
Housing design : Rectangular
Light source : LED, RGB
Wave length : 640 nm, 525 nm, 470 nm
Light spot size : 13 mm x 13 mm
Adjustment : Teach-in button
Teach-in mode : Static 1-point teach-in
Supply voltage : 10 V DC … 30 V DC
Ripple : < 5 Vpp Current consumption : < 120 mA Switching frequency : 0.5 kHz, 1 kHz, 3.5 kHz , adjustable Response time : 1,000 µs, 500 µs, 145 µs Switching output : NPN Switching output (voltage) : NPN: HIGH = approx. UV / LOW ≤ 2 V Output (channel) : 4 colors Output current Imax. : 100 mA Input, teach-in (ET) : NPN , Teach: U < 2 V , Run: U = 10 V ... < UV Input, blanking input (AT) : NPN , Blanked: U < 2 V , Free-running: U > 10 V … < Uv Retention time (ET) : 25 ms, non-volatile memory Time delay : Deactivation delay 20 ms, shiftable Connection type : Male connector M12, 8-pin Protection class : II Circuit protection : UV connections, reverse polarity protected , Output Q short-circuit protected , Interference pulse suppression Enclosure rating : IP67 Weight : 400 g Shipping Weight : 1.4 kg
