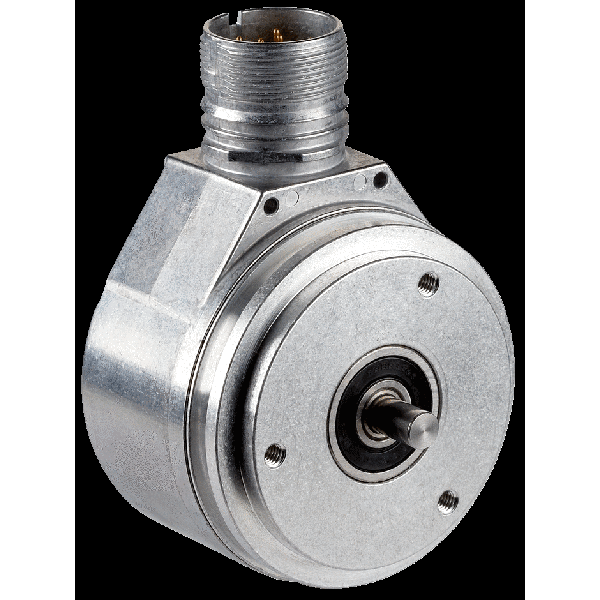

Incremental encoders DFS60
Performance
Pulses per revolution : 16384 1)
Measuring step : 90° electric/pulses per revolution
Measuring step deviation at binary number of lines : ± 0.0015°
Error limits : ± 0.03°
1) See maximum revolution range.
Interfaces
Communication interface : Incremental
Communication Interface detail : TTL / RS-422
Number of signal channels : 6-channel
Initialization time : 40 ms
Output frequency : ≤ 820 kHz
Load current : ≤ 30 mA
Operating current : 40 mA (without load)
Electrical data
Connection type : Male connector, M23, 12-pin, radial
Supply voltage : 4.5 … 5.5 V
Reference signal, number : 1
Reference signal, position : 90°, electric, logically gated with A and B
Short-circuit protection of the outputs : Yes 1)
MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 2)
1) Short-circuit opposite to another channel, US or GND permissable for maximum 30 s.
2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
Mechanical data
Mechanical design : Solid shaft, Servo flange
Shaft diameter : 6 mm
Shaft length : 10 mm
Weight : + 0.3 kg
Shaft material : Stainless steel
Flange material : Aluminum
Housing material : Aluminum die cast
Start up torque : 0.5 Ncm (+20 °C)
Operating torque : 0.3 Ncm (+20 °C)
Permissible Load capacity of shaft
80 N (radial)
40 N (axial)
Operating speed : ≤ 9,000 min?¹ 1)
Moment of inertia of the rotor : 6.2 gcm²
Bearing lifetime : 3.6 x 10^10 revolutions
Angular acceleration : ≤ 500,000 rad/s²
1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range.
Shipping Weight : 1 Kg
