Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

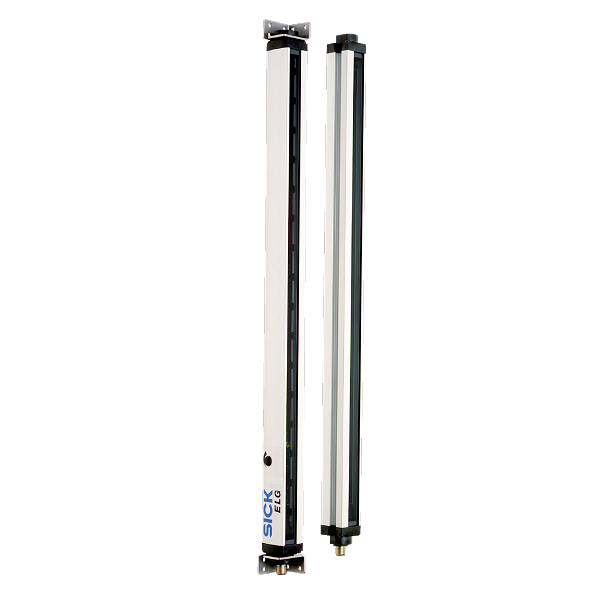

Part Number : ELG3-2370P523
Sensor principle : Sender/receiver
Minimum detectable object (MDO) : 20 mm
Beam separation : 30 mm
Number of beams : 80
Detection height : 2,370 mm
Evaluation beams : Cross beam
Wave length : 880 nm
Supply voltage Vs : DC 15 V … 30 V
Power consumption sender : < 100 mA Power consumption receiver : < 100 mA Ripple : < 5 Vpp Output current Imax. : ≤ 100 mA Output load, capacitive : 100 nF Output load, Inductive : 1 H Initialization time : 1 s Switching output : 2 x PNP Output mode : Q dark switching Dimensions (W x H x D) : 34 mm x 2,446 mm x 29 mm Connection type : Male connector M12, 4-pin Housing material : Aluminum Indication : LED Synchronization : Optical Enclosure rating : IP65 Weight : 6,000 g Shipping Weight : 7 kg
