Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

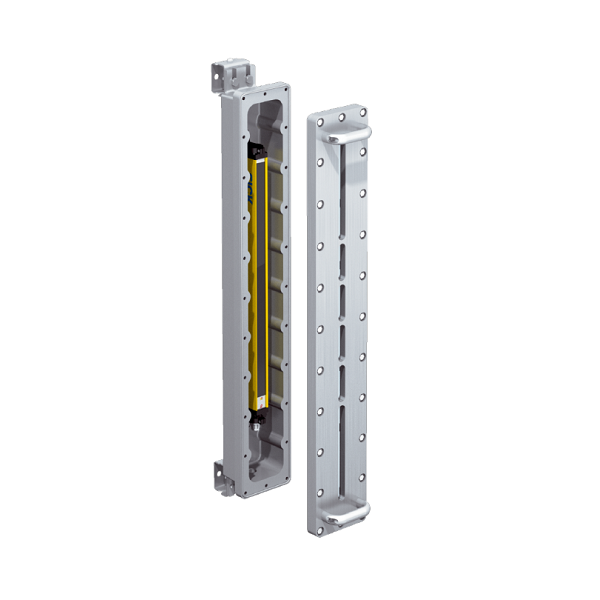

Part Number : EXE-09C6403B020
Application Explosive areas
Ex-approvals ATEX for gas: II 2 G Ex db IIB T6
ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X
NFPA 70/NEC 500 Class I, Div. 1, Groups C and D
NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G
NFPA 70/NEC 500 Class III, Div. 1
System part : Receiver
Resolution : 30 mm
Protective field height : 900 mm
Scanning range : 16 m
Response time : 12 ms
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category C: ategory 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) : 15 x 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
Dimensions See : dimensional drawing
Housing cross-section : 161.8 mm x 142.1 mm
Housing material : Aluminum cast/AlSi7Mg0.6
Weight : 36.574 kg
Shipping Weight : 37.6 kg
