Estimated Lead Time : 6 – 8 Weeks
Manufacturer : SICK Sensors

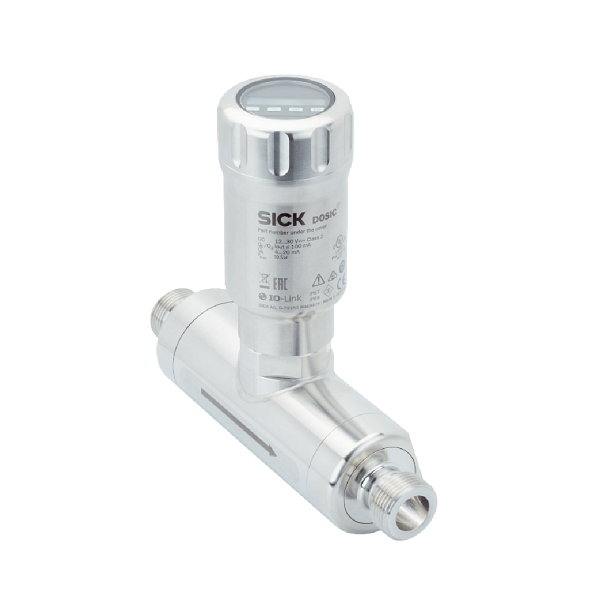

Part Number : FUM-H015F1NC80000
Measurement principle : Ultrasonic sensor
Measurement : Ultrasonic
Medium : Conductive and non-conductive liquids
Nominal width measuring tube : DN 15
Process temperature : –20 °C … +95 °C, up to 143°C for 60 minutes for SIP process (temperature measurement only) 1)
Process pressure : –0.5 bar … 16 bar
Communication interface : IO-Link, IO-Link V1.1
EHEDG approval : Yes
cULus certificate : Yes
RoHS certificate : Yes
FDA : Yes
Temperature measurement : Yes
Supply voltage : 12 V DC … 30 V DC 1)
Power consumption : < 3 W without output load Initialization time : ≤ 5 s Protection class : III Connection type : M12 round connector x 1, 8-pin Output signal : 2 x analog output: 4 mA ... 20 mA, 2 x digital input or output (configurable) 2) 3) Output load : 4 mA ... 20 mA, 500 ohms when Uv > 15 V, 350 ohms when Uv > 12 V
Lower signal level : 3.5 mA … 3.8 mA
Upper signal level : 21.5 mA … 20.5 mA
Digital output : ≤ 100 mA
Impulse output signal : 50 µs … 2 s
Impuls/frequency output : 0 kHz … 10 kHz
Inductive load : < 1 H Capacitive load : < 100 nF < 2.5 nF (IO-Link) EMC : EN 61326-1, EN 61326-2-3 Limit digital inputs : HIGH state voltage > 16.0 V, LOW state voltage < 4.0 V Process connection : ¾" NPT Wetted parts : Stainless steel 1.4404 (Ra ≤ 0,8 µm) Housing material : Stainless steel 1,4305 Housing design : With viewing window made from PMMA (acrylic glass) Enclosure rating : IP67/IP69 (DIN EN 60529) Weight : 2 kg Shipping Weight : 3 kg
