Estimated Lead Time : 4 – 6 weeks.
Manufacturer : SICK Sensors

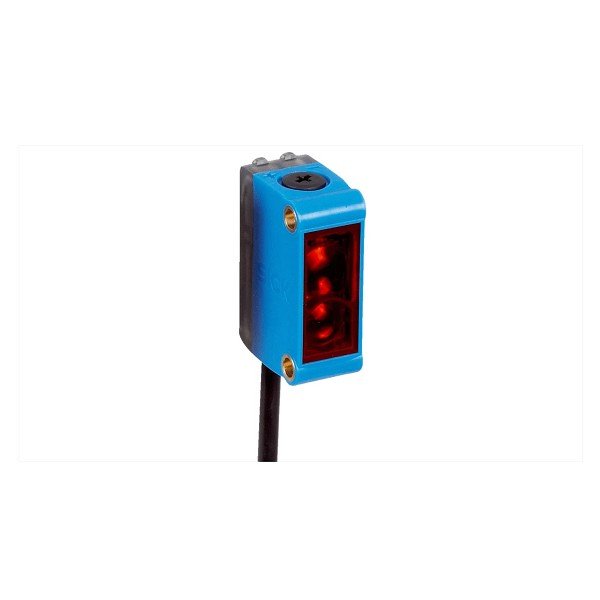

Part Number : GL6-P0211S49
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Sensing range max. : = 6 m ^1)
Sensing range : = 5 m ^1)
Polarisation filters : Yes
Emitted beam :
Light source : PinPoint LED ^2)
Type of light : Visible red light
Light spot size (distance) : Ø 8 mm (350 mm)
Key LED figures
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Supply voltage UB : 10 V DC … 30 V DC ^1)
Ripple : ± 10 % ^2)
Power consumption : 30 mA ^3)
Protection class : III
Digital output :
Type : PNP
Signal voltage PNP HIGH/LOW : VS – (= 3 V) / approx. 0 V
Output current Imax. : = 100 mA ^4)
Response time : < 625 µs ^5) Switching frequency : 1,000 Hz ^6) Switching mode : Light/dark switching Switching mode selector : Selectable via light/dark selector Circuit protection : A ^7) B ^8) D ^9) Housing : Rectangular Dimensions (W x H x D) : 12 mm x 31.5 mm x 21 mm Connection : Cable with M12 male connector, 4-pin Connection detail : Length of cable : 2 m Material : Housing : Plastic, ABS/PC Front screen : Plastic, PMMA Cable : PVC Weight : 170 g Shipping weight : 1 Kg
