Estimated Lead Time : 4 – 6 weeks.
Manufacturer : SICK Sensors

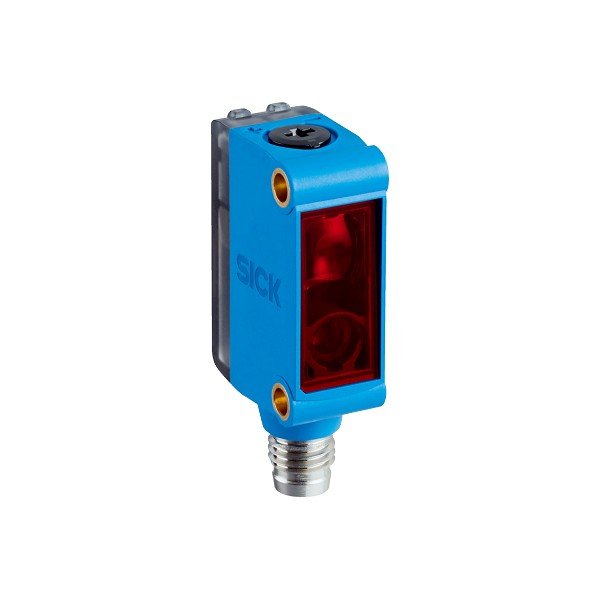

Part Number : GL6G-N4211
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Sensing range max. : = 6 m ^1)
Sensing range : = 5 m ^1)
Polarisation filters : Yes
Emitted beam
Light source : PinPoint LED 2)
Type of light : Visible red light
Light spot size (distance) : Ø 8 mm (350 mm)
Key LED figures :
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Special applications : Detecting transparent objects
Supply voltage UB : 10 V DC … 30 V DC ^1)
Ripple : ± 10 % ^2)
Current consumption : 30 mA ^3)
Protection class : III
Digital output :
Type : NPN
Switching mode : Light/dark switching
Switching mode selector : Selectable via light/dark selector
Signal voltage NPN HIGH/LOW : Approx. VS / = 3 V
Output current Imax. : = 100 mA ^4)
Response time :< 625 µs ^5) Switching frequency : 1,000 Hz ^6) Circuit protection : A ^7) B ^8) D ^9) Special feature : Detecting transparent objects Housing : Rectangular Dimensions (W x H x D) : 12 mm x 31.5 mm x 21 mm Connection : Male connector M8, 4-pin Material : Housing : Plastic, ABS/PC Front screen : Plastic, PMMA Weight : 20 g Shipping weight : 1 Kg
