Estimated Lead Time : 6 – 8 weeks.

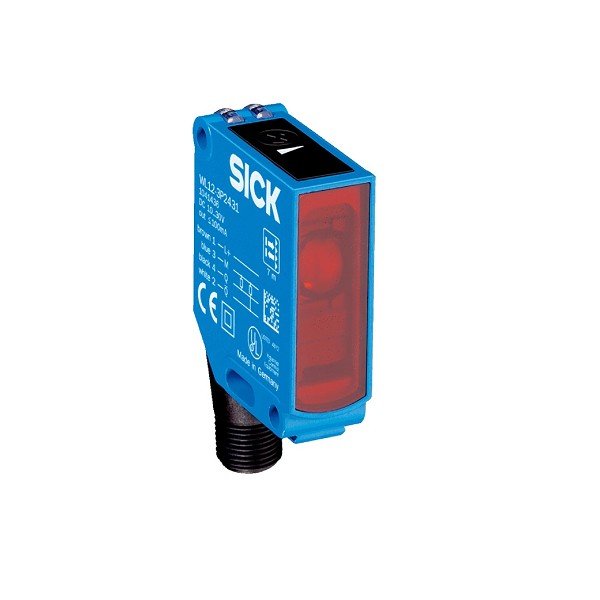

Manufacturer : SICK Sensors
Part Number : WL12-3P2461
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Autocollimation
Sensing range max. : 0 m … 2 m 1)
Sensing range : 0 m … 1.3 m 1)
Emitted beam
Light source : LED 2)
Type of light : Visible red light
Light spot size (distance) : Ø 2 mm (90 mm)
Key LED figures
Wave length : 640 nm
Adjustment : Potentiometer, 5 turns
Angle of dispersion : Approx. 5°
Special applications : Detecting small objects
Items supplied : 2 x clamps BEF-KH-W12, incl. screws
Supply voltage UB : 10 V DC … 30 V DC 1)
Ripple : < 5 Vpp 2) Current consumption : 30 mA 3) Protection class : III Digital output Type : PNP Switching mode : Light/dark switching Signal voltage PNP HIGH/LOW : > Uv – 2,5 V / ca. 0 V
Output current Imax. : = 100 mA
Response time : = 330 µs 4)
Switching frequency : 1,500 Hz 5)
Output function : Complementary
Circuit protection :
A 6)
C 7)
D 8)
Special feature : Focused optics
Housing : Rectangular
Dimensions (W x H x D) : 15.6 mm x 48.5 mm x 42 mm
Connection : Male connector M12, 4-pin
Material
Housing : Metal
Front screen : Plastic, PMMA
Weight : 120 g
Shipping weight : 1.1 kg
