Estimated Lead Time : 4-6 Weeks
LMS100-10000

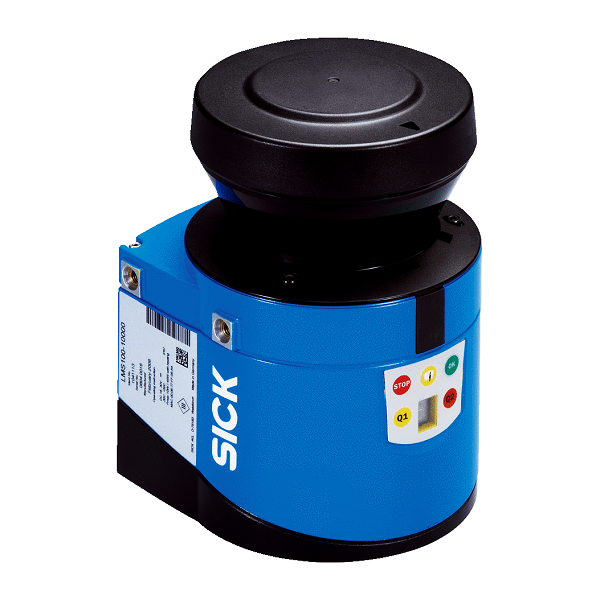

2D laser scanners LMS100-10000 Indoor
Part Number : 1041113
Manufacturer: SICK Sensors
Field of application : Indoor
Light source : Infrared (905 nm)
Laser class : 1, IEC 60825-1 (2007-3)
Aperture angle : 270°
Scanning frequency : 25 Hz / 50 Hz
Angular resolution : 0.25°, 0.5°
Heating : No
Operating range : 0.5 m … 20 m
Max. range with 10 % reflectivity : 18 m
Amount of evaluated echoes : 2
Fog correction : Yes
Response time : ≥ 20 ms
Detectable object shape : Almost any
Systematic error : ± 30 mm 1)
Statistical error : 12 mm 1)
Integrated application : Field evaluation with flexible fields
Number of field sets : 10 fields
Simultaneous evaluation cases : 10
1) Typical value, actual value depends on environmental conditions.
Serial (RS-232) : Yes
Function : Host, AUX
Data transmission rate : 9.6 kBaud … 115.2 kBaud
Ethernet : Yes
Function : Host
Data transmission rate : 10/100 MBit/s
Protocol : TCP/IP, OPC
CAN bus : Yes
Function : Extension of outputs
PROFIBUS DP : –
PROFINET : –
DeviceNet : –
Switching inputs : 2 digital and 2 encoder inputs
Switching outputs : 3
Optical indicators : 7-segment display (plus 5 LEDs showing device status, contamination warning and initial condition)
Electrical connection : 1 x system plug with screw terminal block
Operating voltage : 10.8 V DC … 30 V DC
Power consumption : Typ. 8 W
Housing color : Light blue (RAL 5012)
Enclosure rating : IP 65, EN 60529, Section 14.2.5
Protection class : III, EN 50178 (1997,10)
Weight : 1.1 Kg
Dimensions (L x W x H) : 105 mm x 102 mm x 152 mm
Object remission : 2 % … > 1,000 % (reflectors)
Electromagnetic compatibility (EMC) : EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)
Vibration resistance : EN 60068-2-6 (1995-04)
Shock resistance : EN 60068-2-27 (1993-03)
Ambient operating temperature : 0 °C … +50 °C
Storage temperature : 30 °C … +70 °C
Ambient light immunity : 40,000 lx
Shipping Weight: 2 Kg
Download PDF File LMS100-10000
