Estimated Lead Time : 6 – 8 weeks.

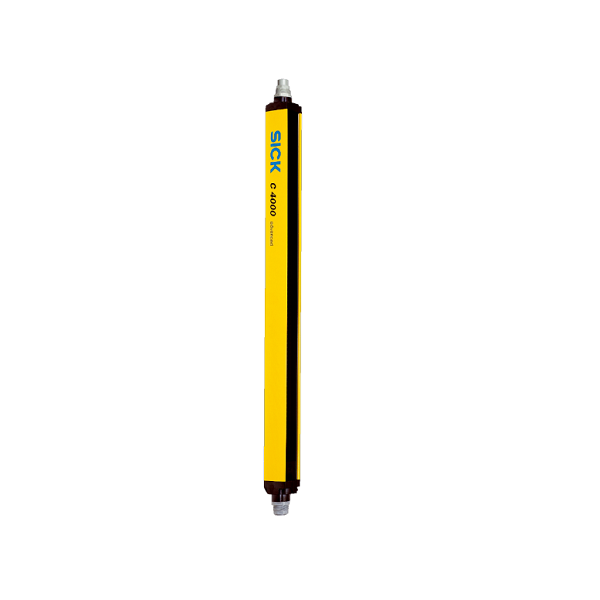

Manufacturer : SICK Sensors
Part Number : C40E-1203DB010
Application : Normal industrial environment
System part : Receiver
Resolution : 30 mm
Scanning range : 21 m
Protective field height : 1,200 mm
Response time : 13 ms
Synchronization : Optical synchronisation
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (EN ISO 13849)
Performance level : PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) : 15 * 10-9 (EN ISO 13849) , 43 * , 10-9 (EN ISO 13849) , 63 * 10-9 (EN ISO 13849)
TM (mission time) : 20 years (EN ISO 13849)
Safe state in the event of a fault : At least one OSSD is in the OFF state.
System connection : Hirschmann male connector M26, 12-pin
Direction of cable connection : Straight
Conductor cross section : 0.75 mm²
Permitted cable length : 50 m
Extension connection : Hirschmann female connector M26, 12 pin
Configuration connection : Female connector M8, 4-pin
Configuration method : PC with CDS (Configuration and Diagnostic Software)
Display elements : 7-segment display
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Residual ripple : ≤ 10 %
Type of output : 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH : 24 V DC (VS – 2.25 V DC … VS)
OFF state, switching voltage LOW : ≤ 2 V DC
Current-carrying capacity per OSSD : ≤ 500 mA
Dimensions : See dimensional drawing
Housing cross-section : 48 mm x 40 mm
Housing material : Aluminum extruded profile
Enclosure rating : IP65 (EN 60529)
Ambient operating temperature : 0 °C … +55 °C
Storage temperature : –25 °C … +70 °C
Air humidity : 15 % … 95 %, Non-condensing
Vibration resistance : 5 g, 10 Hz … 55 Hz (EN 60068-2-6)
Shock resistance : 10 g, 16 ms (EN 60068-2-27)
Wave length : 850 nm
Weight : 2,560 g
Shipping Weight : 4 kg
