Estimated Lead Time:6-8 Weeks.
Manufacturer:SICK Sensors

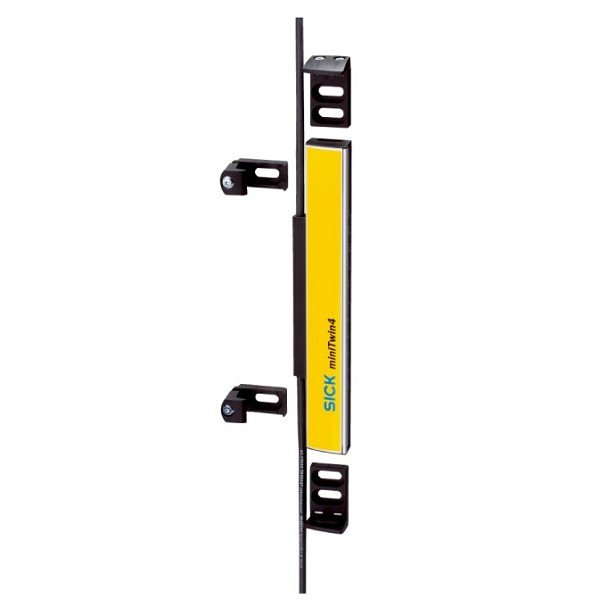

Product Type:Safety Light Curtain Twin-Stick
Model:C4MT-10814AB-B04FE0
Part Number:1207131
Detailed Technical Data:
Features:
System part:1 Twin-Stick
Usage:miniTwin4 as host for 2- or 3-device cascade; miniTwin4 as middle guest for 3-device cascade
Mounting system type:C-fix or L-fix bracket
Resolution:14 mm
Scanning range:Minimum 0 m … 4 m; Typical 0 m … 5 m
Protective field height:1,080 mm
Response time:= 17 ms
Synchronization:Optical, without separate synchronization
Items supplied:Twin stick, System plug, C-Fix and L-Fix bracket (2 pieces each), Test rod with diameter corresponding to the resolution of the safety light curtain
Mechanics/Electronics:
Housing material:Aluminum alloy ALMGSI 0.5
Housing cross-section (incl. system connection):15 mm x 32 mm
Weight:380 g
Shipping Weight:1 kg
