Estimated Lead Time: 6 – 8 weeks
Manufacturer : SICK Sensors

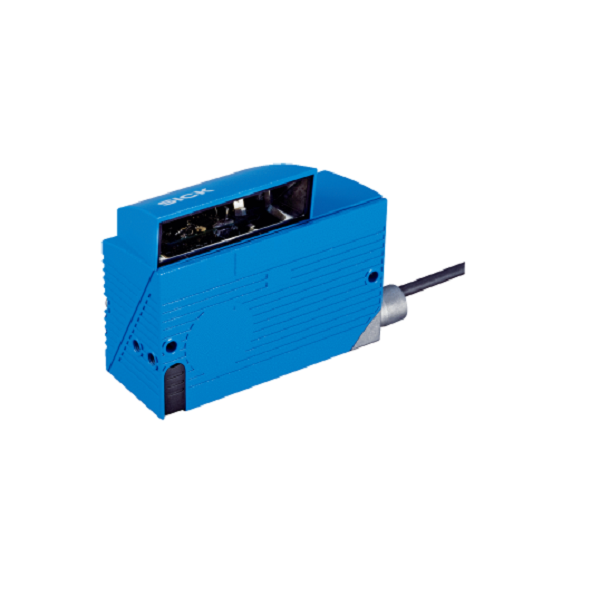

Part Number : CLV618-D2540
Task : Identifying – 1D code
Version : Long Range
Connection type : Cable
Reading field : Side (105°)
Sensor type : Line scanner
Optical focus : Fixed focus
Light source : Light spot, laser, Visible, Red, 655 nm
Laser class : 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle : ≤ 50°
Reading distance : 44 mm … 683 mm 1)
Scanning frequency : 400 Hz … 1,000 Hz
Code resolution : 0.35 mm … 1 mm
Connection type :
1 x “POWER” connection, 5-pin M12 plug (0.9 m), A-coded
1 x “PROFINET P1” connection, 4-pin M12 female connector, D-coded
1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded
Supply voltage : 10 V DC … 30 V DC
Power consumption : 5 W
Housing : Aluminum die cast
Housing color : Light blue (RAL 5012)
Window material : Glass
Enclosure rating : IP65 (DIN 40 050)
Protection class : III (VDE 0106/IEC 1010-1)
Weight : + 310.5 g
Dimensions (L x W x H) : 80 mm x 96 mm x 38 mm
MTBF : 100,000 h
MTTF : 40,000 h (Laser diode) 1)
Shipping Weight : 2 kg
